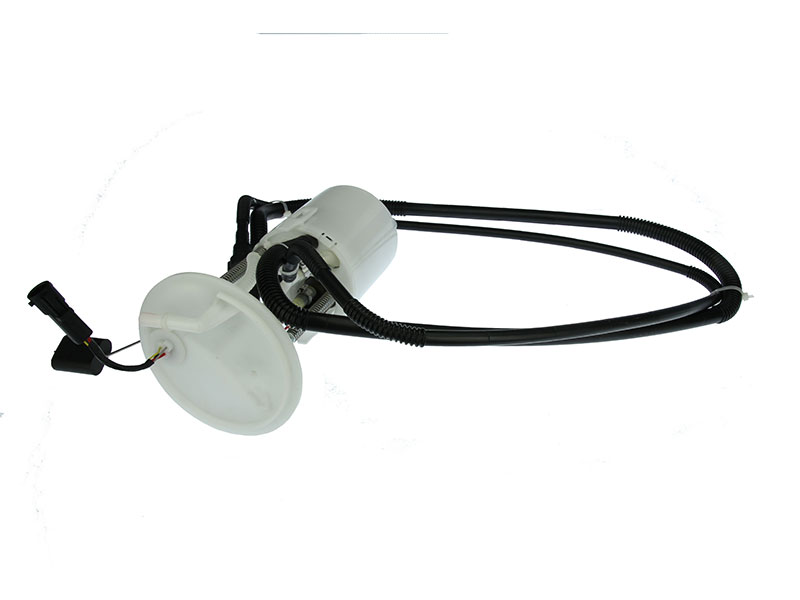

URO Parts Fuel Pump Assembly | C2C24164

Jaguar XJ8, Vanden Plas, S-Type
$168.99
Reg
$176.03
List
$226.96
Ships Tomorrow
Ships Tomorrow Information Icon
Leaves closest warehouse tomorrow.
Loading...

Make Sure It Fits

P/N: C2C24164 URO Parts
Cross References:
  • C2C20262
  • C2C22131
  • C2C6606
  • E8577M
  • FG1712
  • P76604M
  • SP5063M
  • URO016485
  • XR831023
  • XR841337
  • XR844849
  • XR846017
  • XR849199
  • Guaranteed fitment
  • Efficient impeller design maximizes fuel flow while minimizing current draw
  • Precision armature bearings for quiet operation and reduced vibration
  • Low-resistance motor brushes for durability and efficiency
  • Durable high-quality housing materials
  • Factory tested for proper operation
  • 24 Month Unlimited Mileage Warranty
  • Width: 95 mm
  • Terminal Type: Pin
  • Mounting Hardware Included: No
  • Height: 240 mm
  • Terminal Quantity: 4
  • Connector Gender: Female
  • Terminal Gender: Male
  • Voltage: 12
  • Regulator Included: No
  • Maximum Pressure: NA
  • Wire Quantity: 4

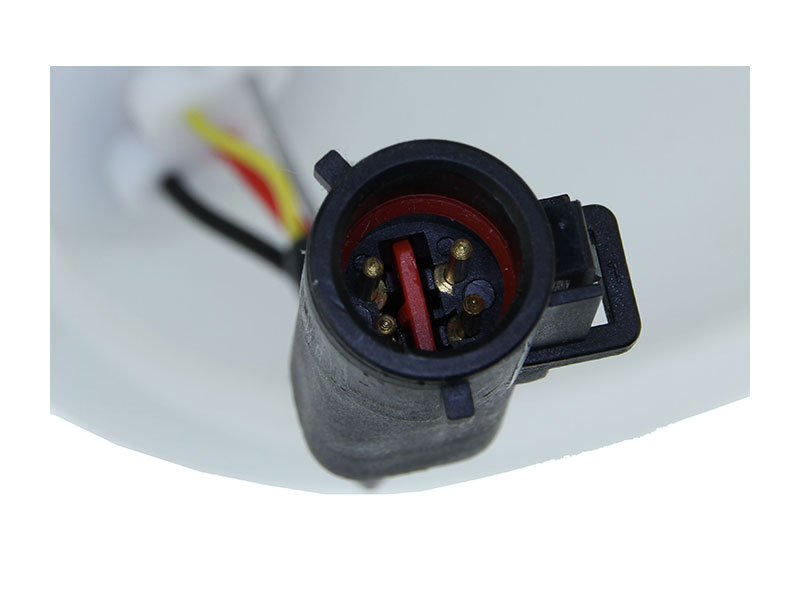

  • Connector Shape: Round
  • Gasket Or Seal Included: Yes
  • Housing Material: POM
  • Maximum Flow Rating: NA
  • Strainer Included: No
  • Inlet Type: Quick Connect
  • Outlet Type: Hose/ Quick connect
  • Inlet Quantity: 1
  • Outlet Quantity: 2
  • Pump Type: Electric
  • Fuel Sending Unit Included: Yes
  • Negative Ground: Yes
  • Inlet Outside Diameter: NA
  • Outlet Outside Diameter: 9.85 mm
  • Fuel Type: Gas
  • Housing Width: 95 mm
  • Wiring Harness Length: 80 mm
  • Connector Color: Black
  • Inlet Thread Diameter: NA
  • Outlet Thread Diameter: NA
  • Universal Or Specific Fit: Specific
  • Housing Length: 95 mm
  • Grade Type: Regular
  • Top Mount Diameter: 125 mm
  • Lock Ring Included: No
  • Fuel Filter Included: Yes
  • In Tank or External: In Tank
  • Inlet Fitting Thread Size: NA
  • Resistance Ohms Empty: 15.4
  • Resistance Ohms Full: 160.6
  • Gasket Or Seal Material: NBR
  • Minimum Free Flow Rate: NA
  • Minimum Pressure: NA
  • Internal Or External Strainer: Internal
  • Wire Harness Included: Yes
  • Outlet Fitting Thread Size: NA
  • Pump Design: In tank
  • Average Current Draw: 12.2
  • Fuel Tank Pressure Sensor Included: No
  • Minimum Flow Rating: NA
  • Average Flow Rating: 47.5 gph
  • Bracket Included: No
  • Outlet Attachment Method: Hose / quick connect
  • Housing Material: POM
  • Minimum Free Flow Rate (gph): NA
  • Operating Pressure (psi): NA
  • Inlet Fitting Type: quick connect
  • Flow Restriction Pressure (psi): NA
  • Outlet Fitting Type: hose / quick connect
  • Manufacturer: Uro
  • Number Of Mounting Holes: 0
  • Amperage (A): 12.2 a
  • Inlet Diameter (In): .47 in
  • Electric Or Mechanical: Electric
  • Vapor Pressure Sensor Included: No
  • Thermistor Low Fuel Indicator Included: No
  • Inlet Diameter (mm): 11.9
  • Fill Vapor Valve Included: No
  • Vapor Vent Line Included: No
  • Relief Pressure (psi): NA
  • In-Line Pump: No
  • Shut Off Pressure (psi): NA
  • Inlet Attachment Method: NA
  • Attachment Method: In tank
  • Flow Rate (gph): 47.5 gph
  • Tank Seal Included: Yes
  • Fuel Static Pressure (psi): NA
  • Maximum Free Flow Rate (gph): NA
  • Rollover Valve Included: No
  • Number Of Connectors: 1
  • Gasket Or Seal Included: Yes
  • Hardware Included: No
  • Fuel Pressure Regulator Included: No
  • Outlet Fitting Thread Size: NA

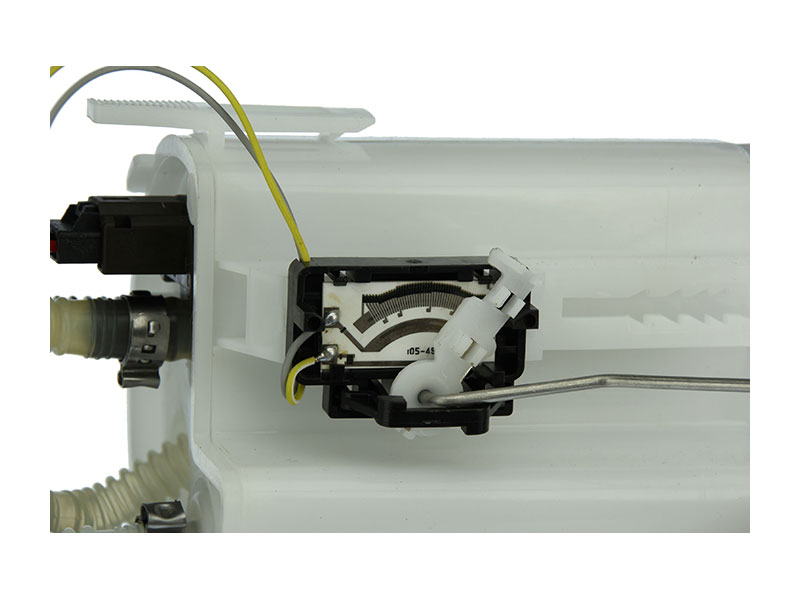

  • Fuel Level Sensor Assembly Included: Yes
  • Maximum Pressure (psi): NA
  • Fuel Level Vent Valve (FLVV) Included: No
  • Outlet Diameter (In): .39 / .36 in
  • Module Included: Yes
  • OE Part/Casting Number: C2C24164
Uro Parts, manufactured by APA Industries, is a quality line of aftermarket replacement parts for import vehicles. The Uro line has been OE factory approved on a number of parts for Jaguar and Mercedes while continuing to work on even more OE approvals. APA conducts extensive quality, fitment, and lifecycle testing in-house to assure customer satisfaction that the parts will exceed your expectations. Their engineers also work with manufacturers to design improvements and build better than OE products on those parts that had issues from the original manufacturer on the vehicles. Uro Parts is always striving to build the best available part at the most affordable price.
Left = Driver side and Right = Passenger side.
All parts are priced individually unless identified as a set or kit. "Per car" notes identify how many of a given part your car has and "Left/Right or Front/Rear" notes means the part fits the left or right side of the car. These parts are still sold individually and you'll need to select the appropriate quantity if you plan to replace more than one of this item.

Why Buy OEM & Genuine Replacement Auto Parts from AutohausAZ?

Auto parts at wholesale prices is what you will find at AutohausAZ. Have you been searching the web for auto parts for your vehicle? You have come to the right place! Here at Autohaus, we strive to offer low prices on quality replacement parts and providing first rate customer service.

What This URO Parts Fuel Pump Assembly Fits?

Application information below is for reference only and should not be used to determine the exact vehicle fitment. Please use the "Make Sure It Fits" vehicle selection box above to determine the exact fitment and review any application notes. If you need any help determining if this part works with your vehicle, please don't hesitate to contact us.

Jaguar
03-03 - S-Type
02-02 - S-Type
Chassis Range: From M45256
04-04 - S-Type
Chassis Range: To N13088
04-05 - Vanden Plas
04-05 - XJ8 Base, L
